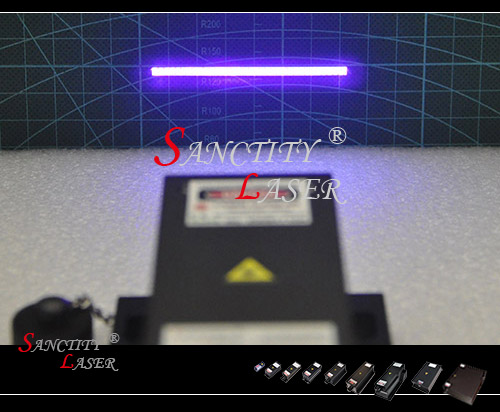

| 405nm 3.5mm Laser Beam 30° |
| |
 |

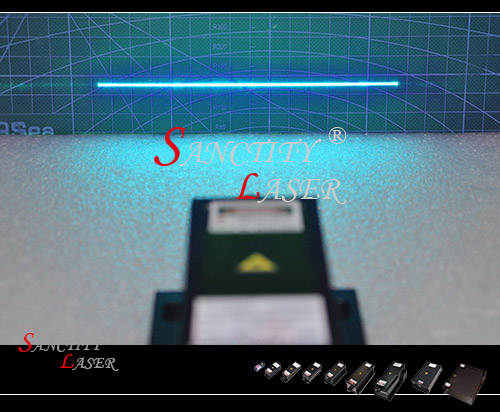

| 473nm 1.5mm Laser Beam 60° |
| |
 |

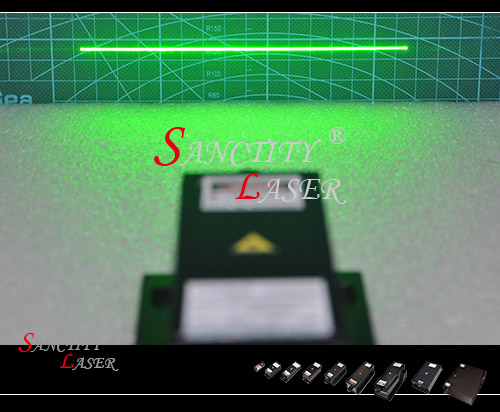

| 532nm 1.0mm Laser Beam 60° |
| |
 |
| 589nm 2.5mm Laser Beam 45° |
| |
 |
| 671nm 3.0mm Laser Beam 60° |
| |
|
| |
| |
| |
| |
| |
| |
| |
 |
 |

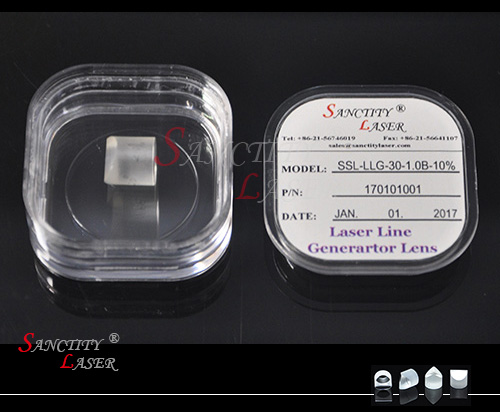

| LASER LINE GENERATOR LENSES |
 |
| [ POWELL LENSES ] |
| Click to Line Output Lasers |
| Specification |
| |
|
|
|
 |
| |
|
|
|
| |
|
|
 |
Material: |
N-BK7 |
|
|
Diameter Tolerance: |
± 0.05mm |
|
Surface Figure: |
λ/2@632.8nm |
|
Surface Quality: |
40 / 20 |
|
Bevel: |
0.25 × 45° |
|
Clear Aperture: |
> 90% |
|
Intensity Distribution |
< 40%, < 30%, < 20%, < 10%, < 5% |
|
Coating: |
By customer request AR or customize |
| |
|
| |
| |
PRODUCTS LIST |
 |
|
| Part No. |
|
|
|
|
|
|
| SSL-LLG-05-1.0B-5%-10%-20%-30%-40% |
8.93 |
~ 8.5 |
5° |
1.0 |
| < 5% |
| |
| < 10% |
| |
| < 20% |
| |
| < 30% |
| |
| < 40% |
|
N-BK7 |

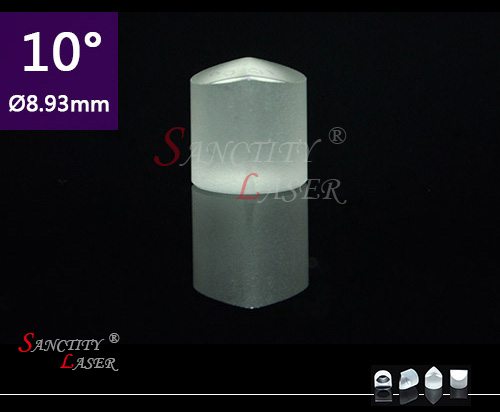

| SSL-LLG-10-1.0B-5%-10%-20%-30%-40% |
8.93 |
~ 8.1 |
10° |
1.0 |
N-BK7 |
| SSL-LLG-15-1.0B-5%-10%-20%-30%-40% |
8.93 |
~ 7.2 |
15° |
1.0 |
N-BK7 |
| SSL-LLG-20-1.0B-5%-10%-20%-30%-40% |
8.93 |
~ 6.5 |
20° |
1.0 |
N-BK7 |

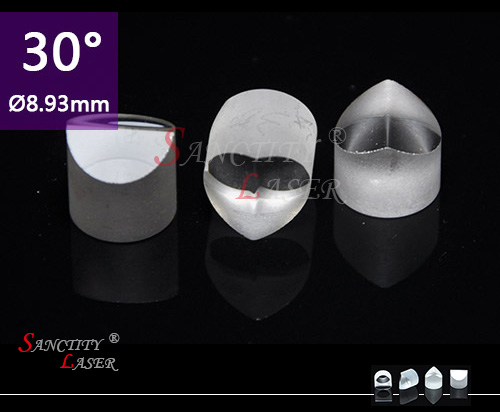

| SSL-LLG-30-1.0B-5%-10%-20%-30%-40% |
8.93 |
~ 5.9 |
30° |
1.0 |
N-BK7 |

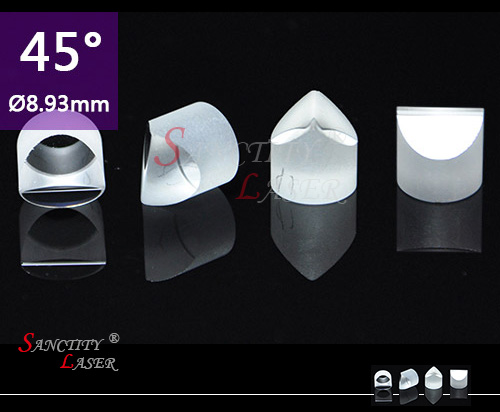

| SSL-LLG-45-1.0B-5%-10%-20%-30%-40% |
8.93 |
~ 5.7 |
45° |
1.0 |
N-BK7 |

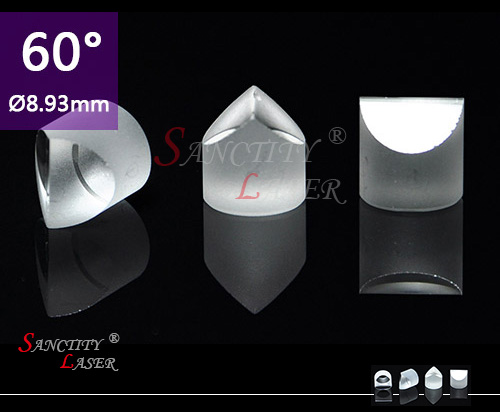

| SSL-LLG-60-1.0B-5%-10%-20%-30%-40% |
8.93 |
~ 5.5 |
60° |
1.0 |
N-BK7 |
| SSL-LLG-70-1.0B-5%-10%-20%-30%-40% |
8.93 |
~ 4.7 |
70° |
1.0 |
N-BK7 |

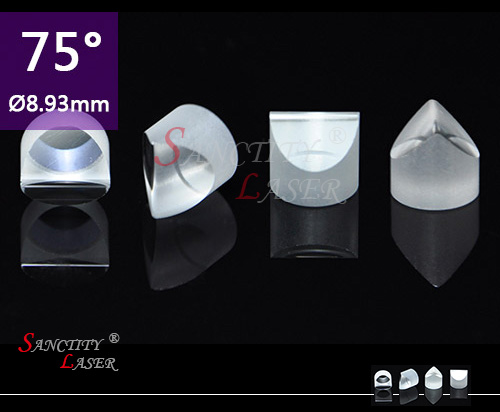

| SSL-LLG-75-1.0B-5%-10%-20%-30%-40% |
8.93 |
~ 4.4 |
75° |
1.0 |
N-BK7 |
| SSL-LLG-85-1.0B-5%-10%-20%-30%-40% |
8.93 |
~ 4.2 |
85° |
1.0 |
N-BK7 |

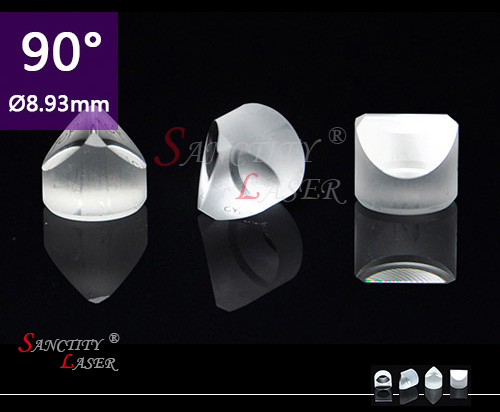

| SSL-LLG-90-1.0B-5%-10%-20%-30%-40% |
8.93 |
~ 4.0 |
90° |
1.0 |
N-BK7 |
| SSL-LLG-95-1.0B-5%-10%-20%-30%-40% |
8.93 |
~ 3.9 |
95° |
1.0 |
N-BK7 |
| |

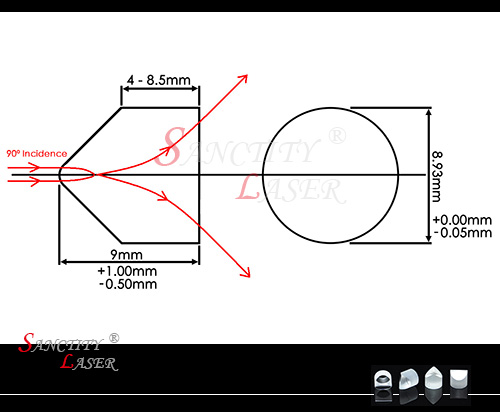

| LENS DIAMETERS: |
Standard Diameters is 8.93mm other size need request. |
|
| LASER BEAM: |
Standard Lens matched 1.0mm laser beam, other beam size need request. |
|
| INTENSITY DISTRIBUTION: |
Standard Lens intensity distribution is < 40%, other intensity need request, delivery time longer than standard lenses. |
|
| MATERIAL: |
Standard Lens of N-BK7, other Material need request. |
|
| |
| What Is A Perfect Laser Line? |
| |
 |
| 405nm Laser Line |
| |
 |
| |
 |
|
| 532nm Laser Line |
| |
 |
|

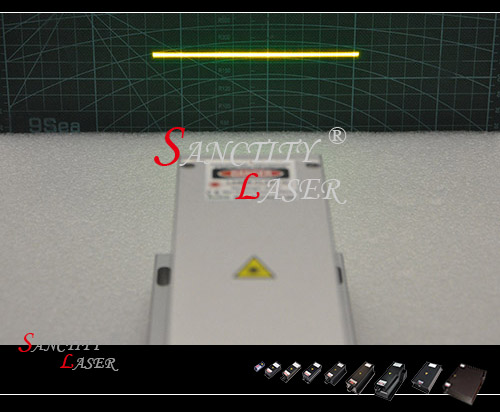

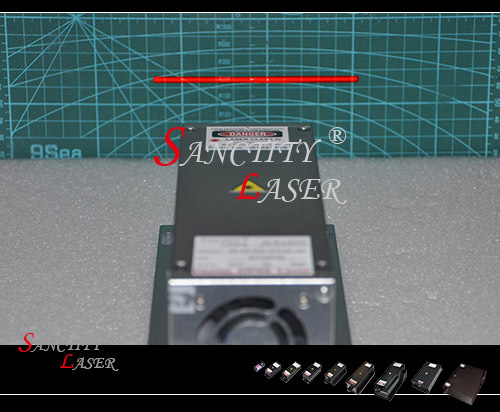

| Perfect Laser Line [ Our Line Output Lasers ] |
| |
 |
|
| Laser beam size too small, not matching to lens design beam size |
| |
 |
|
| Laser beam size too big, not matching to lens design beam size |

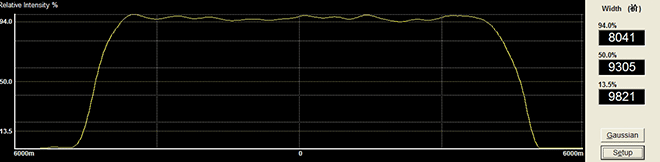

| Test Report Curve Graph |
| |
|
|
 |
|
 |
|

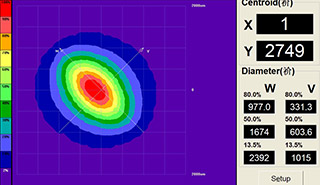

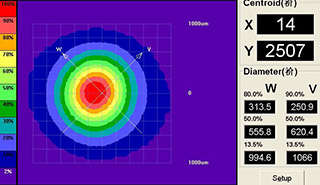

| CCD Laser Beam Profile Pictures |
| |
 |
|
 |
| |
|
|
 |
|
 |
| |
|
|
 |
|
 |
|
| Intensity Distribution < 10% Test Reports Curve Graph |
| |
 |
|
| Intensity Distribution < 5% Test Report Curve Graph |
 |
|

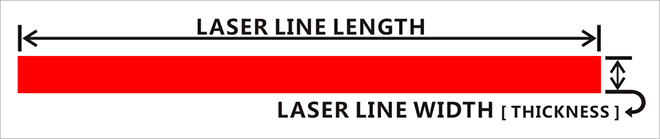

| Laser Line Width = Original Laser Beam Diameter [ At Any Working Distances ] |
| Example: |
532nm 100mW laser beam diameter is: |
1.5mm at 1meter target, the line width is 1.5mm. |
|
|
1.6mm at 3meters target, the line width is 1.6mm. |
|
|
1.8mm at 5meters target, the line width is 1.8mm. |
| Note: The Laser line generator lens also will not change the original laser beam divergence. |
| |
|
