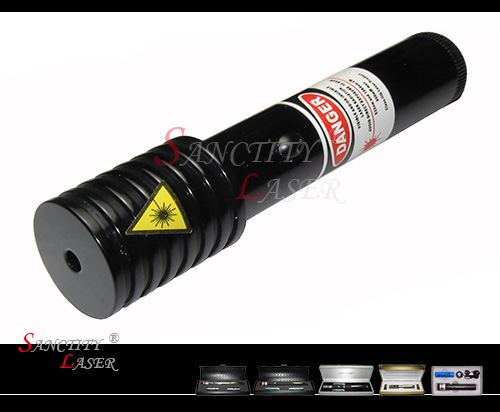

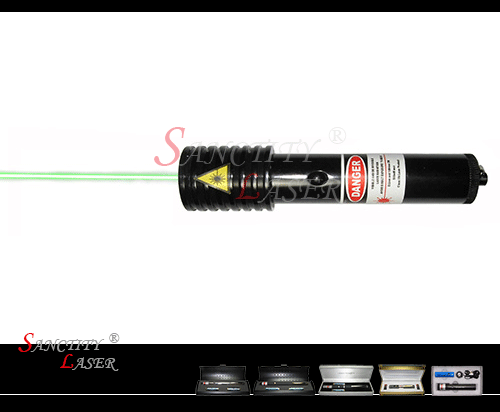

| RG MULTICOLOR LASER POINTERS |
 |
| CLASS II, IIIb Pointers |
| Specifications |
 Products Code |
SSL - LP - RG - 650 - D |
| Wavelength [ nm ] |
532 |
650 ± 5nm |
|
| Output Power [ mW ] |
1 - 100 |
1 - 100 |
|
| Laser Power Safe Class |
II - IIIb |
II - IIIb |
|
| Operating Mode |
CW |
| Transverse Mode |
TEM00 |
TE00 |
|
| Operating Temperature [ ºC ] |
-10 ~ +50 |
| Operating Humidity [ % ] |
< 90 |
| Storage Temperatures [ ºC ] |
-40 ~ +80 |
| Storage Humidity [ % ] |
< 60 |
| Beam Diameters At The Aperture [ mm ] |
~ 4.5 |
| Beam Divergence [ mrad ] |
~ 1.3 |
| Pointer Dimensions |
Diameter [ mm ] |
Ø: 38 |
| Length [ mm ] |
196 |

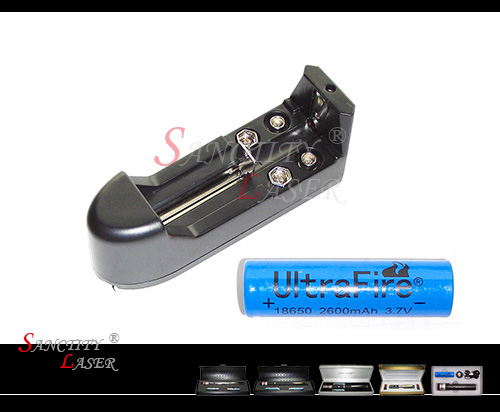

| Optional Battery |
Li battery of 18650 × 1 |
| Working Voltage [ VDC ] |
3.7 |
| Optics |
Glass lens both AR coated |
| Laser Mount Material |
Black Anodized Aluminum |
| Laser Gross Weight [ g ] [ Without Battery ] |
290 |
| Electrode Reverse Protection |
YES |
| Cooling Way |
Air |
| Expected Lifetime [ hours ] |
> 8000 |
| Warranty Time [ months ] |
6 |
| Lead Time |
Quantity [ pcs ] |
< 100 |
< 500 |
< 1000< 5000 |
| Time [ weeks ] |
1 |
2 |
3 - 4 |
| |
|
|
| |
Last Update Time: |
2024. 05. 15 |
| |
|
| Note: |
| |
|
| 1. |
Operation Instruction For This Laser Pointer: |
|
|
|
|
|
 |
| |
|
|
| 2. |
Notes For Warranty and Safe: |
|
| |
|
|
| 3. |
Explain for every laser specification please check here: |
 |
| |
|
|
| 4. |
More request for the products please contact to our Customer Service Team: |
 |
| |
|
|
| |
|
|
