FIBER LASERS


Applications

Optical Fiber Communication Medical Instruments
Laser Welding Laser Cutting
Fiber Holography Laser Marking
Semiconductor Processing Non-Contact Inspection
Scientific Research Laser 3D Display System
        A 635nm Fiber Output Laser Beam

SANCTITY LASER provide " Single Mode Output " and " Multimode Output " two types of fiber output lasers.

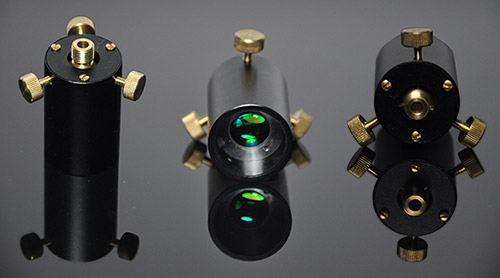

Our company all lasers can make to fiber output laser, after customer choosing the laser type and fiber type, then our engineers will adjust the laser beam divergences suitable to fiber output laser and choosing the optical focus parts, copling and adjust the beam to the fiber, then the fiber laser finished.

Please check the " Fiber Coupling Efficiency List " and " Laser Type List " below, you can click the link of the " Laser Types List " to each laser specification page, or click the laser menu on this page left side, also could direct contact to our sales engineers, them will provide more adive for you.

ORDER INFORMATION   LASER PRODUCTS CUSTOMS HS CODE: 9013200099





473nm

532nm

635nm

808nm

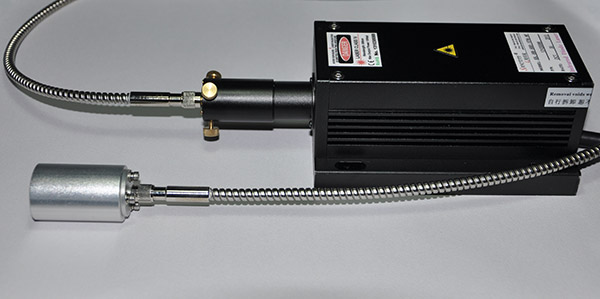

All fiber protected by metal cover

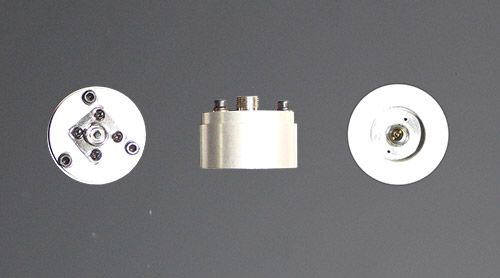

Connector of SMA 905   Connector of FC / PC
Notes For Fiber Laser Connect Method of SMA 905   Notes For Fiber Laser Connect Method of FC/PC

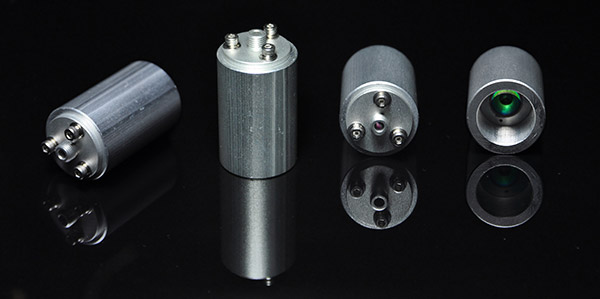

Fiber Collimator [ For fiber end side ]
All connectors and collimators is Dismountable


MMF [ Multi Mode Fiber ] Comparison with SMF [ Single Mode Fiber ]

The main difference between multi-mode and single-mode optical fiber is that the former has much larger core diameter, typically 50–100 micrometers; much larger than the wavelength of the light carried in it. Because of the large core and also the possibility of large numerical aperture, multi-mode fiber has higher "light-gathering" capacity than single-mode fiber.


In practical terms, the larger core size simplifies connections and also allows the use of lower-cost electronics such as light-emitting diodes (LEDs) and vertical-cavity surface-emitting lasers (VCSELs), single-mode fibers require more expensive laser sources.

Single mode fibers exist for nearly all visible wavelengths of light. However, compared to single-mode fibers, the multi-mode fiber bandwidth–distance product limit is lower. Because multi-mode fiber has a larger core-size than single-mode fiber, it supports more than one propagation mode; hence it is limited by modal dispersion, while single mode is not.


Fiber Coupling Efficiency List
LASER TYPE
SM Fiber
4 - 9 μm
MM Fiber
>50 μm
MM Fiber
>100 μm
MM Fiber
>200 μm
MM Fiber
>300 μm
MM Fiber
>400 μm
DPSS LASER TEM00 > 40% > 75% > 80% > 85% > 90% > 95%
Multi Transverse Mode > 30% > 65% > 70% > 80% > 90% > 90%
DIODE LASER TE00 > 20% > 65% > 80% > 80% > 90% > 90%
Multi Transverse Mode > 10% > 35% > 70% > 75% > 80% > 85%
Laser Wavelengths & Output Power List
LINK WAVELENGTH TYPE OUTPUT POWER LINK WAVELENGTH TYPE OUTPUT POWER
266nm DPSS 1 - 10mW 780nm Diode 1 - 2500mW
320nm DPSS 1 - 40mW 785nm Diode 1 - 2000mW
355nm DPSS 1 - 100mW 793nm Diode 1 - 2000mW
360nm DPSS 1 - 100mW 800nm Diode 1 - 2000mW
375nm Diode 1 - 500mW 808nm Diode 1 - 20000mW
380nm Diode 1 - 300mW 825nm Diode 1 - 3000mW
395nm Diode 1 - 100mW 830nm Diode 1 - 2000mW
405nm Diode 1 - 600mW 850nm Diode 1 - 2000mW
430nm DPSS 1 - 10mW 880nm Diode 1 - 2000mW
445nm Diode 1 - 15000mW 885nm Diode 1 - 2000mW
450nm Diode 1 - 1000mW 914nm DPSS 1 - 1000mW
457nm DPSS 1 - 8000mW 915nm Diode 1 - 8000mW
473nm DPSS 1 - 1500mW 940nm Diode 1 - 9000mW
480nm DPSS 1 - 200mW 946nm DPSS 1 - 1000mW
490nm Diode 1 - 2000mW 965nm Diode 1 - 2000mW
514.5nm Diode 1 - 50mW 975nm Diode 1 - 5000mW
515nm DPSS 1 - 500mW 980nm Diode 1 - 8000mW
520nm Diode 1 - 10000mW 1030nm DPSS 1 - 50mW
523.5nm DPSS 1 - 1000mW 1047nm DPSS 1 - 1000mW
526.5nm DPSS 1 - 1000mW 1053nm DPSS 1 - 2000mW
532nm DPSS 1 - 20000mW 1064nm Diode 1 - 2000mW
543nm DPSS 1 - 2000mW 1064nm DPSS 1 - 25000mW
556nm DPSS 1 - 2000mW 1085nm DPSS 1 - 300mW
561nm DPSS 1 - 2000mW 1122nm DPSS 1 - 300mW
589nm DPSS 1 - 3500mW 1310nm Diode 1 - 50mW
593.5nm DPSS 1 - 1000mW 1313nm DPSS 1 - 1000mW
635nm Diode 1 - 7000mW 1319nm DPSS 1 - 2000mW
638nm Diode 1 - 6000mW 1342nm DPSS 1 - 7000mW
639nm DPSS 1 - 1000mW 1450nm Diode 1 - 300mW
650nm Diode 1 - 6000mW 1470nm Diode 1 - 3000mW
656.5nm DPSS 1 - 1000mW 1530nm Diode 1 - 3000mW
660nm Diode 1 - 6000mW 1550nm Diode 1 - 3000mW
660nm DPSS 1 - 2000mW 1870nm Diode 1 - 500mW
671nm DPSS 1 - 6000mW 1905nm Diode 1 - 500mW
680nm Diode 1 - 1500mW 1940nm Diode 1 - 500mW
690nm Diode 1 - 1000mW 2200nm Diode 1 - 500mW
721nm DPSS 1 - 800mW - - -


Fiber Laser Test report included following test items: Sample Reprot


Beam Profile Test   Power/Energy Stability Test   Power Adjust Curve Graph   Laser Noise Test
[ TEM00 Mode Type ]       [ Power Adjustable Type ]



F-P Interferometer Single-frequency Mode Test   Coherent length Test   M² Factor Test   Wavelengths Test
[ need request ]


Note:

1. Laser price including "laser head" and "power supply".
Sanctity Laser not sell "laser head" or "power supply" individually.

2. Download the "Notes For Fiber Laser Connect Method SMA905" by PDF file please click:

3. Download the "Notes For Fiber Laser Connect Method FC/PC" by PDF file please click:

4. Operation Instruction For Lasers:

5. Notes For TTL Modulation: TTL     Analog

6. Notes For Warranty and Safe:

7. Explain for every laser specification please check here:

8. More request for the products please contact to our Customer Service Team:

PRODUCTS CODE EXPLAIN

  MODEL : SSL - 671 - 0001 - XXM - XF


  SSL : Shanghai Sanctity Laser
  671 : Laser wavelength of 671nm
  0001 : Laser output power of "milli watt" 0001 = 1mW 1000 = 1Watt
  XXM : 10TM of 10KHz TTL Modulation & 10AM of 10KHz Analog Modulation
  F : SF : Single Mode Fiber Output
    MF : Multimode Fiber Output
  P/N : Every laser products have a exclusive 8bit numbers
