808nm INFRARED DIODE LASERS




Specification
Products Code SSL - 808 - XXXX - XXM - D
Wavelength [ nm ] 808 ± 3
Output Power [ mW ] 3100 - 5000
Operating Mode CW
Transverse Mode TE00
Operating Temperature [ ºC ]
+10 - +35
Storage Temperatures [ ºC ]
-10 - +45
Warm-up Time [ minutes ] < 5
Power Stability [ Over 4hours ] 5%, 3%, 1%
M² Factor < 15
Beam Diameters At The Aperture [ mm ] ~ 4.0 × 6.0
Beam Divergence, Full Angle [ mrad ] < 2.0
Spectral Linewidth [ nm ] < 1.0
Polarization Ratio > 50 : 1
Point Stability After Warm-up [ mrad ] < 0.05
Noise Of Amplitude [ rms ] < 30%
Modulation [ TTL or Analog Alternative ] Standard 10KHz, Up to 40KHz need request

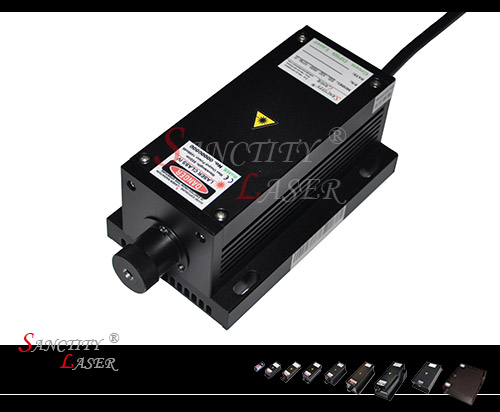

Laser Head Dimensions [ mm ]
160 [ L ] × 78 [ W ] × 60 [ H ]

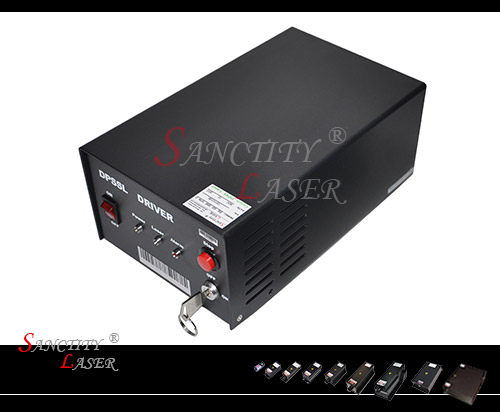

Power Supply Dimensions [ mm ]
235 [ L ] × 145 [ W ] × 100 [ H ]
Power Supply Dimensions [ mm ] Power Adjustable
260 [ L ] × 145 [ W ] × 105 [ H ]
Working Voltage [ VAC ] 85 - 245
Laser Gross Weight [ kg ] 3.0
Cooling Way TEC & Air
Expected Lifetime [ hours ] 10000
Warranty Time [ year ] 1
Lead Time 1 - 3pcs 5 - 10pcs < 20pcs
< 2weeks 3weeks 4weeks

  Last Update Time: 2019. 02. 20

Note:

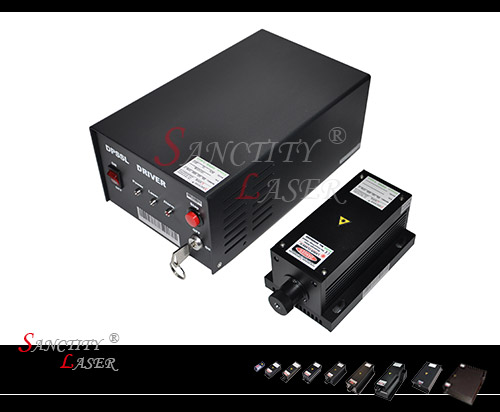

1. Laser price including "laser head" and "power supply".
Sanctity Laser not sell "laser head" or "power supply" individually.

2. Operation Instruction For This Laser: General     LED

3. Notes For TTL and Analog Modulation: TTL     Analog

4. Notes For Warranty and Safe:

5. Explain for every laser specification please check here:

6. More request for the products please contact to our Customer Service Team:
