| 520nm GREEN DIODE LASER POINTERS |
 |
| CLASS IIIb, IV Pointers, Laser Sword |
| Specifications |
 Products Code |
SSL - LP - 520 - XXX - D |
| Wavelength [ nm ] |
520 ± 5nm |
| Output Power [ mW ] |
10 - 50 |
10 - 50 |
10 - 50 |
| Laser Power Safe Class |
IIIb |
IIIb |
IIIb |
| Operating Mode |
CW |
| Transverse Mode |
TE00 |
| Operating Temperature [ ºC ] |
-10 ~ +50 |
| Operating Humidity [ % ] |
< 90 |
| Storage Temperatures [ ºC ] |
-40 ~ +80 |
| Storage Humidity [ % ] |
< 60 |
| Beam Diameters At The Aperture [ mm ] |
~ 2.0 |
| Beam Divergence [ mrad ] |
~ 0.5 |

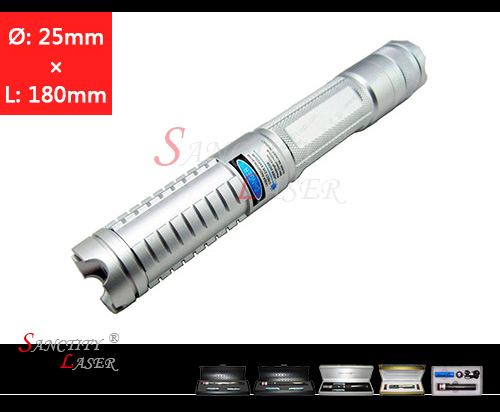

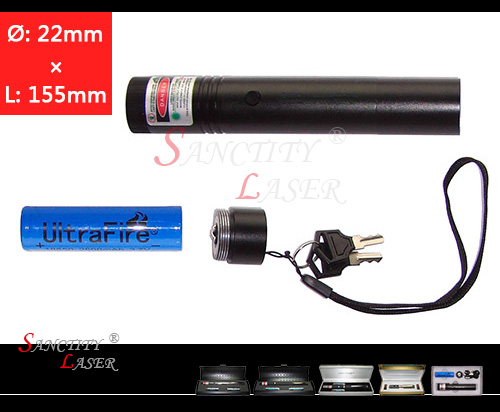

| Pointer Dimensions |
Diameter [ mm ] |
Ø: 22 |

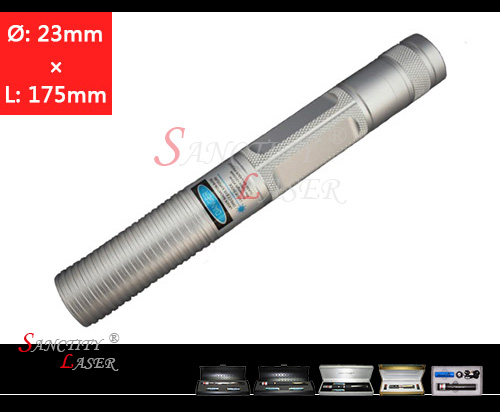

Ø: 23 |
Ø: 25 |
| Length [ mm ] |
L: 155 |
L: 175 |
L: 180 |

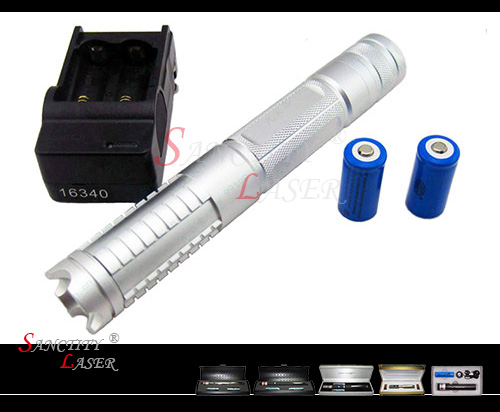

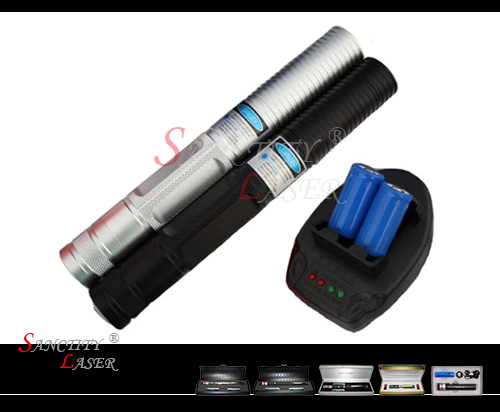

| Optional Battery |
3.7v Rechargeable Li-ion Battery CR123A 16340 x 2 |
| Working Voltage [ VDC ] |
7.4 |
| Optics |
Glass lens both AR coated |
| Pointer Mount Material |
Aluminium Alloy |
Aluminium Alloy |
Aluminium Alloy |
| Laser Gross Weight [ g ] [ Without Battery ] |
120 |
150 |
180 |
| Electrode Reverse Protection |
YES |
YES |
YES |
| Cooling Way |
Air |
| Expected Lifetime [ hours ] |
> 8000 |
| Warranty Time [ months ] |
6 |
| Lead Time |
Quantity [ pcs ] |
< 100 |
< 500 |
< 1000 |
| Time [ weeks ] |
1 - 2 |
2 - 3 |
3 - 4 |
| |
|
|
| |
Last Update Time: |
2024. 05. 15 |
| |
|
| Note: |
| |
|
| 1. |
Operation Instruction For This Laser Pointer: |
|
|
|
|
|
 |
| |
|
|
| 2. |
Notes For Warranty and Safe: |
|
| |
|
|
| 3. |
Explain for every laser specification please check here: |
 |
| |
|
|
| 4. |
More request for the products please contact to our Customer Service Team: |
 |
| |
|
|
| |
|
|
