RG & RGB & YGB CUSTOM-BUILT LASER SYSTEMS
FULL COLOUR OUTPUT SYSTEMS

If you want more high power output RG, RGB YGB laser systems, we can provider various wavelength of: [ Blue, Green, Yellow and Red light ] lasers for you, you can choose any power lasers you want of below list, matching to Dichroitic Mirror or Commix Mirror and Lens Bracket to build multi-color laser systems by you own.

And we will adjust all your selected laser beam divergence to same angles, and provider laser systems coupling drawing with Instruction, it can help to you easy to build any output power multi-color laser systems.

ORDER INFORMATION   LASER PRODUCTS CUSTOMS HS CODE: 9013200099


OPTIONAL LASER LIST
Wavelength [ nm ] 445 450 457 473 532 589
Output Power [ mW ] 1 - 15000 1 - 1000 1 - 8000 1 - 1500 1 - 20000 1 - 2500
Laser Type DIODE LASER DIODE LASER DPSS LASER DPSS LASER DPSS LASER DPSS LASER
Link

Wavelength [ nm ] 593.5 635 650 660 660 671
Output Power [ mW ] 1 - 1000 1 - 5000 1 - 6000 1 - 6000 1 - 2000 1 - 5000
Laser Type DPSS LASER DIODE LASER DIODE LASER DIODE LASER DPSS LASER DPSS LASER
Link


LASER COMMIX RATE
System Name Rate
RG Laser System / 532nm ~30% 635nm ~30%
/ 532nm ~30% 635nm ~30%
/ 532nm ~30% 635nm ~30%
/ 532nm ~30% 635nm ~30%
/ 532nm ~30% 635nm ~30%
RGB Laser System 445nm or 450nm ~30% 532nm ~30% 635nm ~30%
445nm or 450nm ~30% 532nm ~30% 650nm ~30%
445nm or 450nm ~30% 532nm ~30% 650nm ~30%
457nm ~30% 532nm ~30% 671nm ~30%
457nm ~30% 532nm ~30% 635nm ~30%
457nm ~30% 532nm ~30% 635nm ~30%
473nm ~30% 532nm ~30% 635nm ~30%
473nm ~30% 532nm ~30% 635nm ~30%
473nm ~30% 532nm ~30% 635nm ~30%
YGB Laser System 473nm ~30% 532nm ~30% 589nm ~30%
473nm ~30% 532nm ~30% 593.5nm ~30%

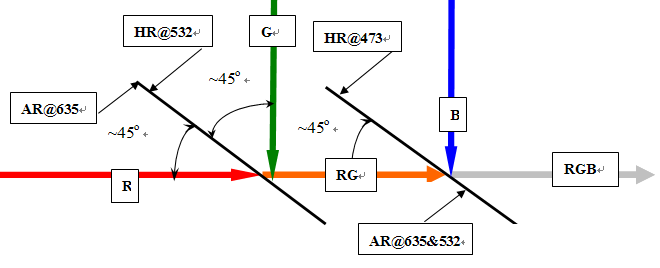

RGB 3 in 1 Laser System Coupling Drawing
AR: Coating of "Antireflection" HR: Coating of "High-reflecting" After @ is laser wavelength

RGB 5 in 1 Laser System Coupling Drawing
AR: Coating of "Antireflection" HR: Coating of "High-reflecting" After @ is laser wavelength

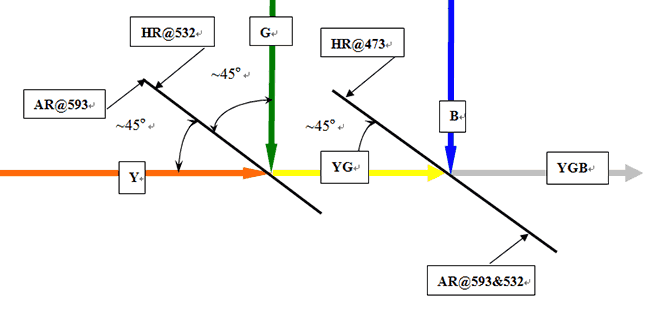

YGB 3 in 1 Laser System Coupling Drawing
AR: Coating of "Antireflection" HR: Coating of "High-reflecting" After @ is laser wavelength

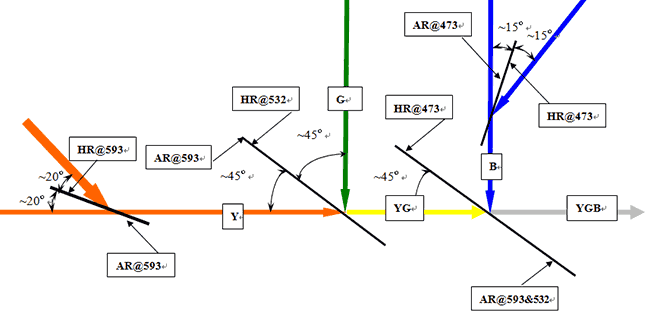

YGB 5 in 1 Laser System Coupling Drawing
AR: Coating of "Antireflection" HR: Coating of "High-reflecting" After @ is laser wavelength
